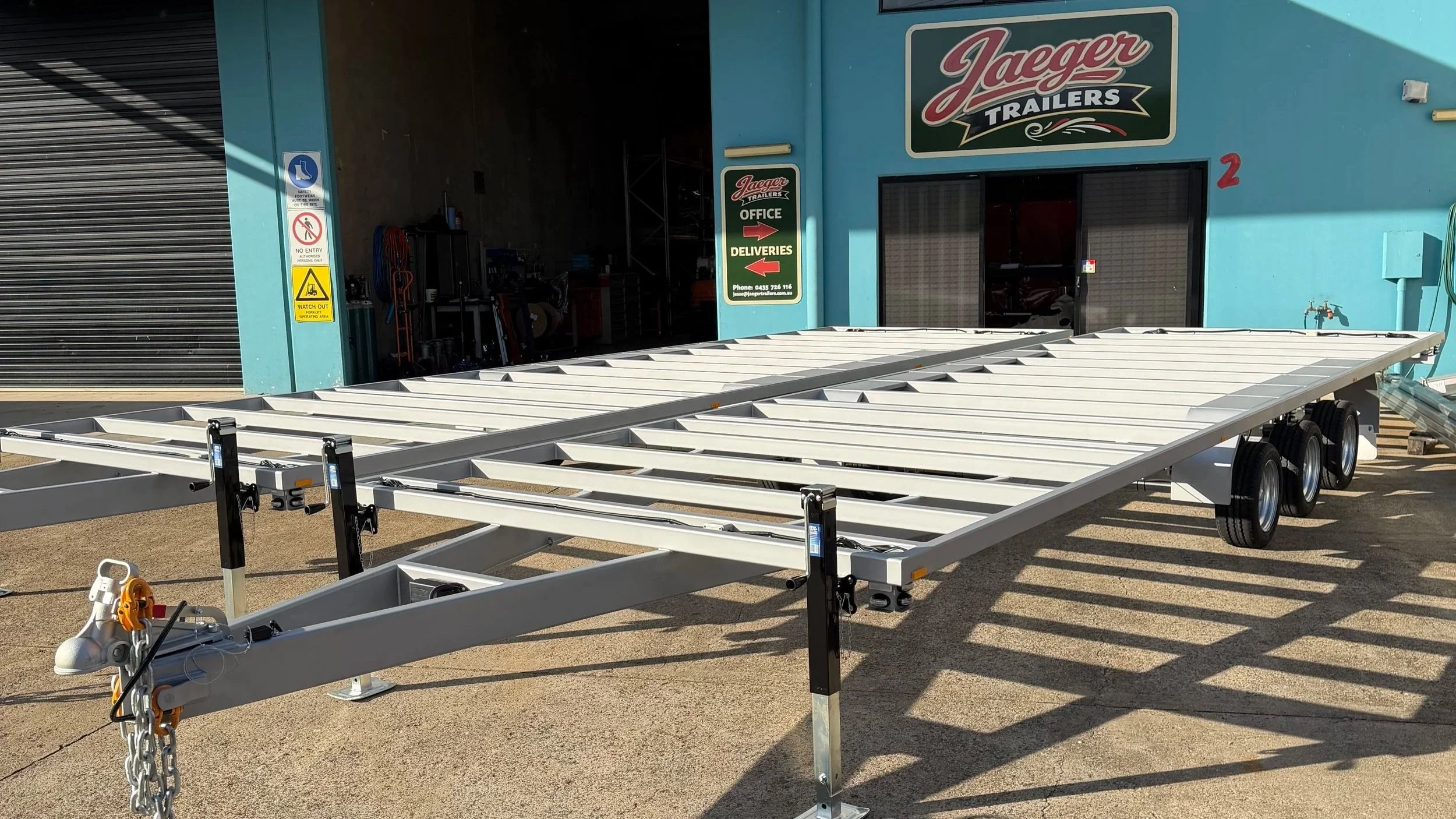

CTA-Approved Tiny House Chassis
Purpose-built foundations for the tiny home industry.
Manufactured on the Sunshine Coast, our CTA-approved tiny house chassis are designed to provide a compliant foundation for tiny home manufacturers and builders.
With heavy-duty Duragal steel construction, hot-dip galvanised finishes and customisable dimensions, our chassis are engineered for strength, durability and long-term performance.
CTA Approval: CTA-061974
Technical Specifications
| Specification | Details |
|---|---|
| Approval | CTA-061974 |
| Trailer Classification | TC |
| ATM | 4,500 kg |
| Available Lengths | 6.0 m, 7.2 m, 8.0 m, 8.4 m, 9.0 m |
| Width | Up to 2,400 mm |
| Chassis Construction | C350-grade DuraGal steel |
| Crossmember Spacing | 450 mm, 600 mm or custom placement to suit floor plans |
| Surface Finish | Hot-dip galvanised or painted |
| Coupling | 70 mm ball coupling |
| Axles | Lightweight axles |
| Wheels & Tyres | Low-profile wheels and tyres |
| Braking | Electric braking system |
| Suspension | Triaxle configuration |
| Lighting | LED Autolamps lighting system, supplied with cable extensions for body-mounted marker lights |
| Application | Tiny homes and caravan base chassis |
| Engineering | FEA-analysed and engineered chassis design |
Specifications may vary depending on chassis dimensions, intended application and approved configuration. Contact Jaeger Trailers to discuss custom requirements.
