Skeletal Trailers
Versatile foundations. Purpose-built for your application.
Jaeger Trailers manufactures skeletal chassis trailers designed for modular structures, transportable buildings, equipment and specialised applications.
Our open-frame chassis designs provide a practical, adaptable platform with custom mounting provisions to suit individual project requirements.

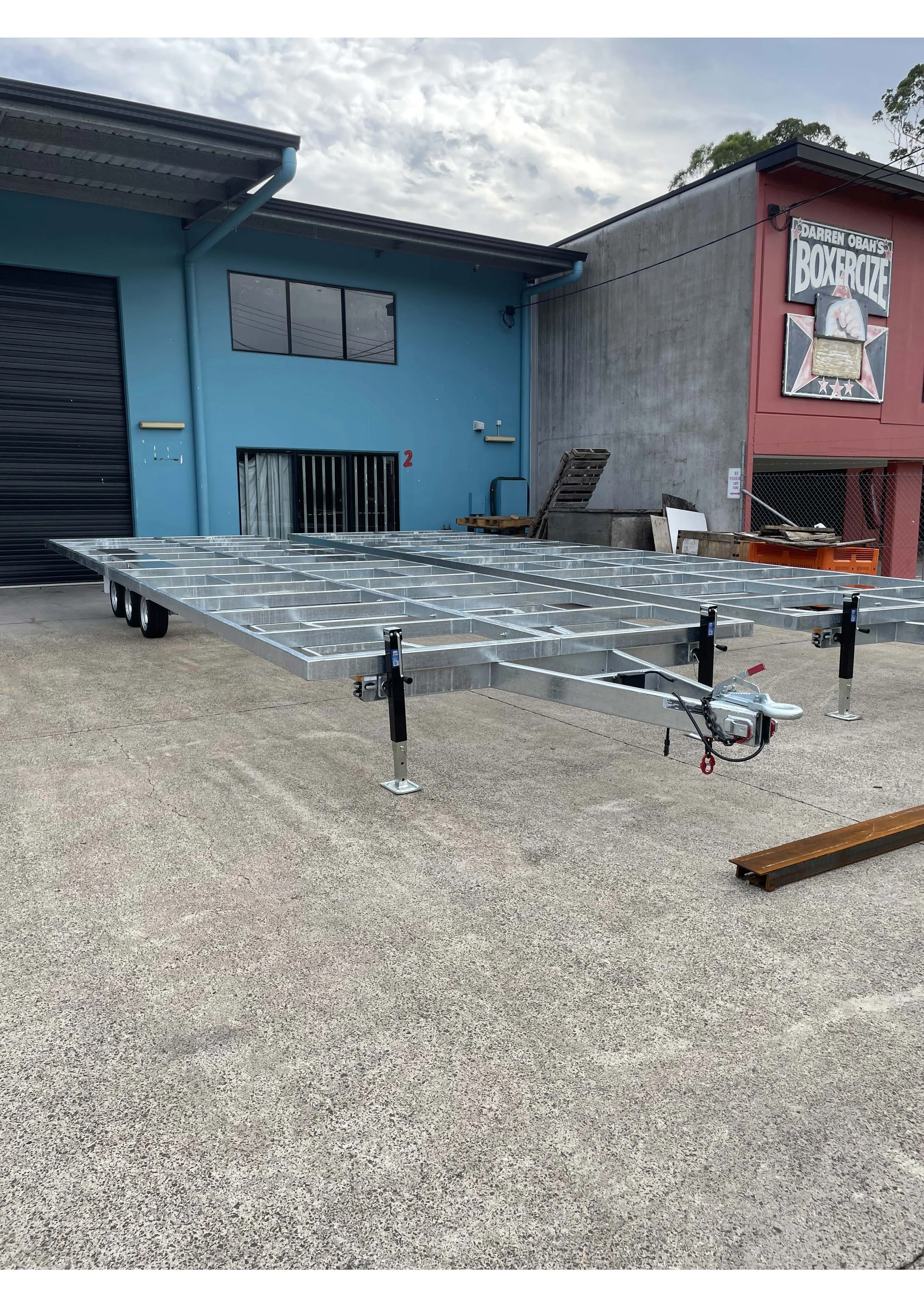

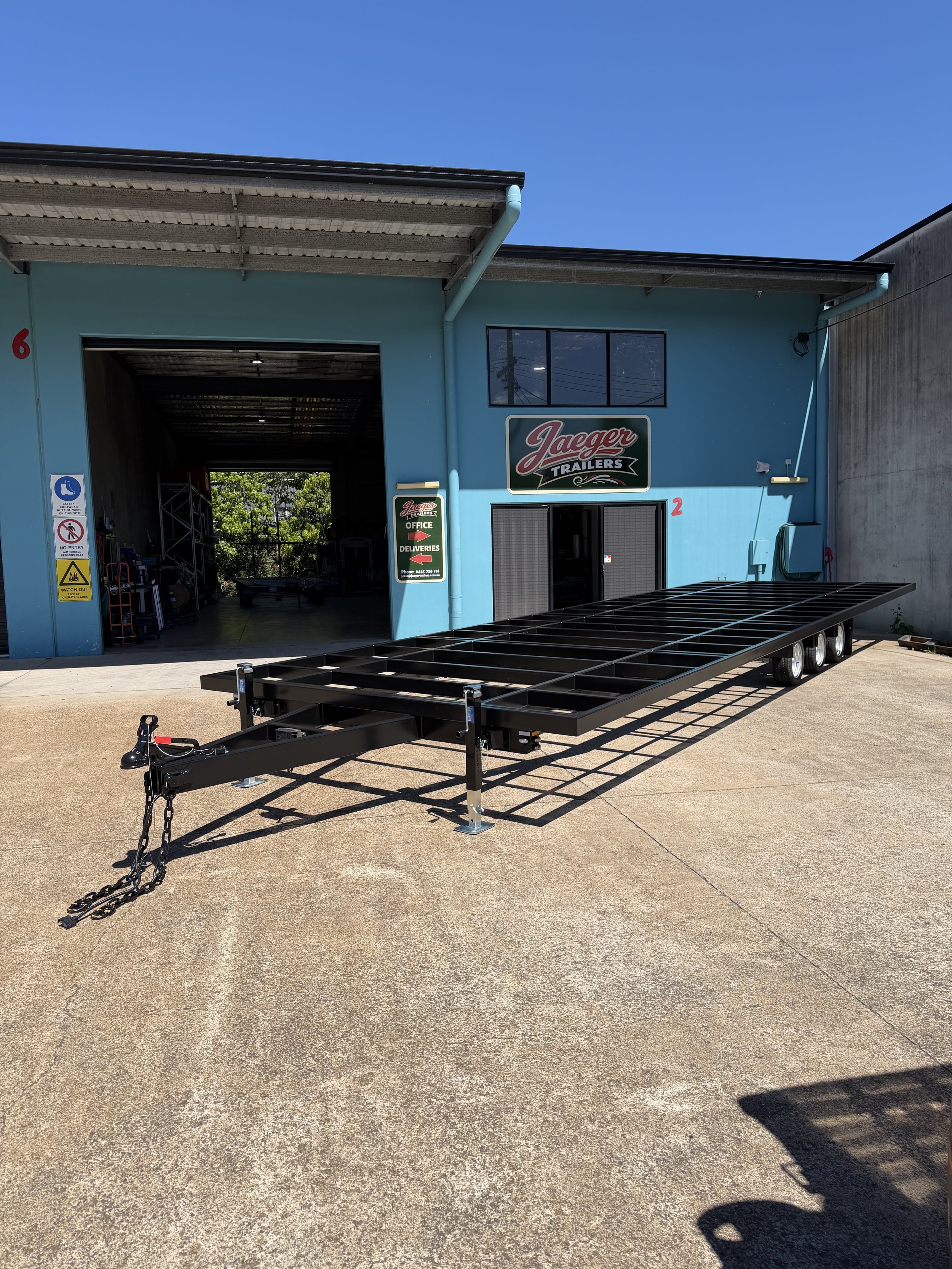

Available in a range of lengths and weight capacities, each trailer is manufactured using quality steel components, with painted or hot-dip galvanised finishes available.
Built to Last.
Technical Specifications
| Specification | Details |
|---|---|
| Vehicle Type Approvals | VTA-065506 (TC) / VTA-065507 (TB) |
| Trailer Classification | TB / TC |
| ATM | 2,000 kg – 4,500 kg |
| Available Lengths | 5.4 m, 6.0 m, 8.0 m, 9.0 m, 10.0 m |
| Chassis Base Width | 2,400 mm |
| Optional Top Frame | Separate 3,000 mm wide top frame available |
| Chassis Construction | C350-grade DuraGal steel |
| Chassis Design | Open skeletal frame |
| Crossmember Configuration | Custom structural supports and mounting provisions |
| Surface Finish | Hot-dip galvanised or painted |
| Coupling | 50 mm ball, 70 mm ball or pintle ring coupling, rated to suit ATM |
| Axles | Model-dependent axle configuration |
| Wheels & Tyres | Low-profile options available |
| Braking | Electric braking system |
| Suspension | Tandem or triaxle configuration |
| Lighting | LED Autolamps lighting system |
| Mounting Options | Bolt-down plates, container locks or custom mounting provisions |
| Applications | Tiny homes, modular buildings, transportable cabins, equipment and custom structures |
| Registration | Registration included |
| Engineering | Engineered chassis design |
Specifications may vary depending on trailer dimensions, ATM, intended application and approved configuration.
Oversize Transport & Compliance: Jaeger Trailers takes road transport safety and compliance seriously. Optional 3,000 mm wide top frames may exceed standard legal road dimensions and require additional permits, conditions or transport arrangements. Customers are encouraged to discuss their intended application and transport requirements with us prior to ordering.
